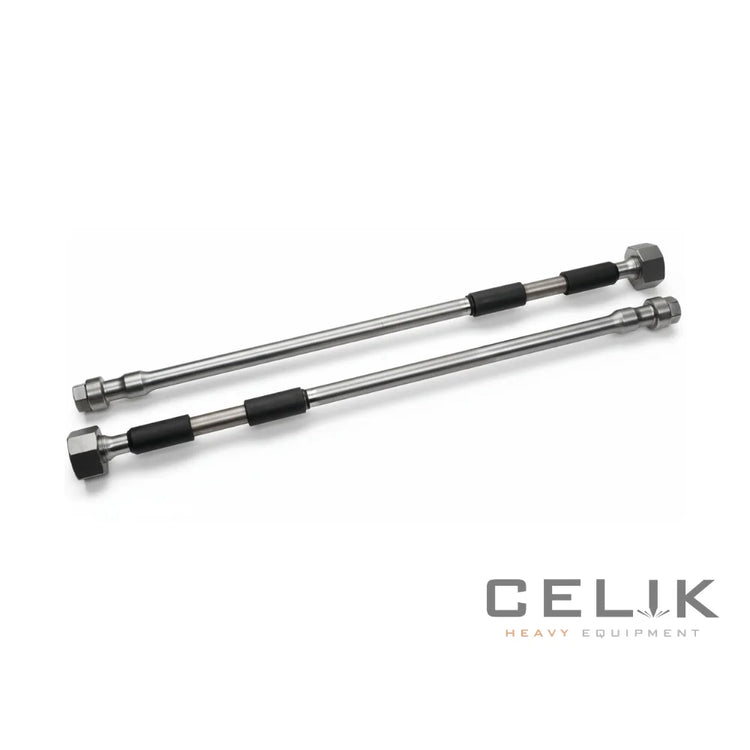

Hydraulic breaker side bolts (also referred to as through bolts or tie rods) are structural elements that hold the main housing of the hydraulic breaker together. They maintain axial preload across the breaker body, ensuring that internal components remain properly aligned during high-frequency impact operation.

Because hydraulic breakers operate under extreme cyclic loading, side bolts are exposed to continuous tensile stress and vibration. Over time, this can lead to elongation, fatigue cracking, thread deformation or loss of preload force. Regular inspection is necessary to maintain structural integrity and prevent catastrophic housing failure.

How Often Should Side Bolts Be Checked?

Side bolts should be inspected during every major service interval or when the breaker is disassembled. In high-duty applications such as quarrying and mining, more frequent inspection is recommended.

Key inspection points include:

• Thread wear or deformation
• Elongation under tensile load
• Cracks or fatigue marks
• Loss of tightening torque
• Uneven preload across bolts

How Can You Tell if Side Bolts Are Working Properly?

Properly functioning side bolts maintain consistent clamping force across the breaker housing. Indicators of correct operation include:

• Stable housing alignment
• No visible gap formation between housing sections
• Consistent torque retention
• Absence of abnormal vibration caused by structural looseness

When Should Side Bolts Be Replaced?

Replacement is required when:

• Thread damage is present
• Bolt elongation exceeds allowable limits
• Fatigue cracks are detected
• Torque retention is no longer stable
• Housing alignment cannot be maintained

Failure to replace worn side bolts can result in housing distortion and secondary damage to internal components such as pistons, bushings and cylinders.

OEM vs Aftermarket Side Bolts

Original fastening components are manufactured to defined mechanical specifications and are typically used in factory rebuilds. Replacement-grade components must match tensile strength, dimensional accuracy and thread integrity to ensure safe operation under repeated impact loads.

Why Choose Celik Heavy Equipment Side Bolts?

Celik Heavy Equipment supplies side bolts and through bolts designed for hydraulic breaker structural assembly requirements.

Key characteristics:

• Controlled heat-treated alloy steel
• Defined tensile strength and fatigue resistance
• Machined thread accuracy for preload stability
• Compatibility with major breaker housings
• Consistent dimensional repeatability across batches


What is the function of side bolts in a hydraulic breaker?

Side bolts maintain structural compression of the breaker housing and ensure internal components remain aligned under repeated impact loads.

How do side bolts fail?

Common failure modes include thread wear, elongation, fatigue cracking and loss of preload due to repeated vibration.

How often should through bolts be replaced?

Replacement depends on operating conditions, but they are typically evaluated during major overhauls or when structural looseness is detected.

Why is side bolt integrity important?

Failure of side bolts can lead to housing misalignment and secondary damage to internal components, significantly increasing repair costs and downtime.
